Body Sculpture Portabl

Portable body contouring: selective ultrasound (fat/cellulite), vacuum motorised rollers, plus bipolar RF with vacuum — collagen, drainage and silhouette protocols.

Selective ultrasound (marketing copy references 40 MHz; the dedicated cavitation probe is specified at 40 kHz in the datasheet — treat as complementary descriptions and verify with factory documentation).

External rollers: rotating directions, lymphatic support, toxin/fluid drainage, contribution to fat-oriented programmes.

RF + vacuum: bio-physical heating accelerates metabolism, supports microcirculation, addresses oedema, reactivates lipolysis and reduces fibrotic tightening of subcutaneous tissue for smoother, firmer skin.

Air supply: 220V / 110V

Motor power: 12V DC

RF frequency: 5 MHz

RF output level: 10

RF maximum power: 60W

Air pump power: 270W

LED: red 650 nm, green 560 nm, blue 490 nm

Medium roller probe — air supply 220V/110V; motor 5V DC; RF supply 36V DC; RF 5 MHz; RF level 10; red light 650 nm.

40 kHz cavitation probe — supply 36V; cavitation frequency 40 kHz; max output power 54W; head surface 33 cm²; energy intensity 1.62 W/cm²; pulsed output; output level 8.

Product name: Body Sculpture Portabl

Product code: 9840

Power supply: 220V / 50Hz

Dimensions: 650 × 510 × 1220 mm

Maximum power: 800W

Fuse: 5A

Touch control panel with VECOM UI (per catalog)

Emergency stop button on front panel

Selective Ultrasound — Fat & Cellulite

Targets excess fat metabolism, boosts circulation and cellular activity; reactivates fat-prone zones and revitalises cellulite-affected tissue (promotional headline: 40 MHz; cavitation handpiece table: 40 kHz).

External Automatic Rollers

Rotating rollers support vasodilation and lymphatic flow, help flush fluid and toxins, and contribute to silhouette redefinition alongside fat-oriented protocols.

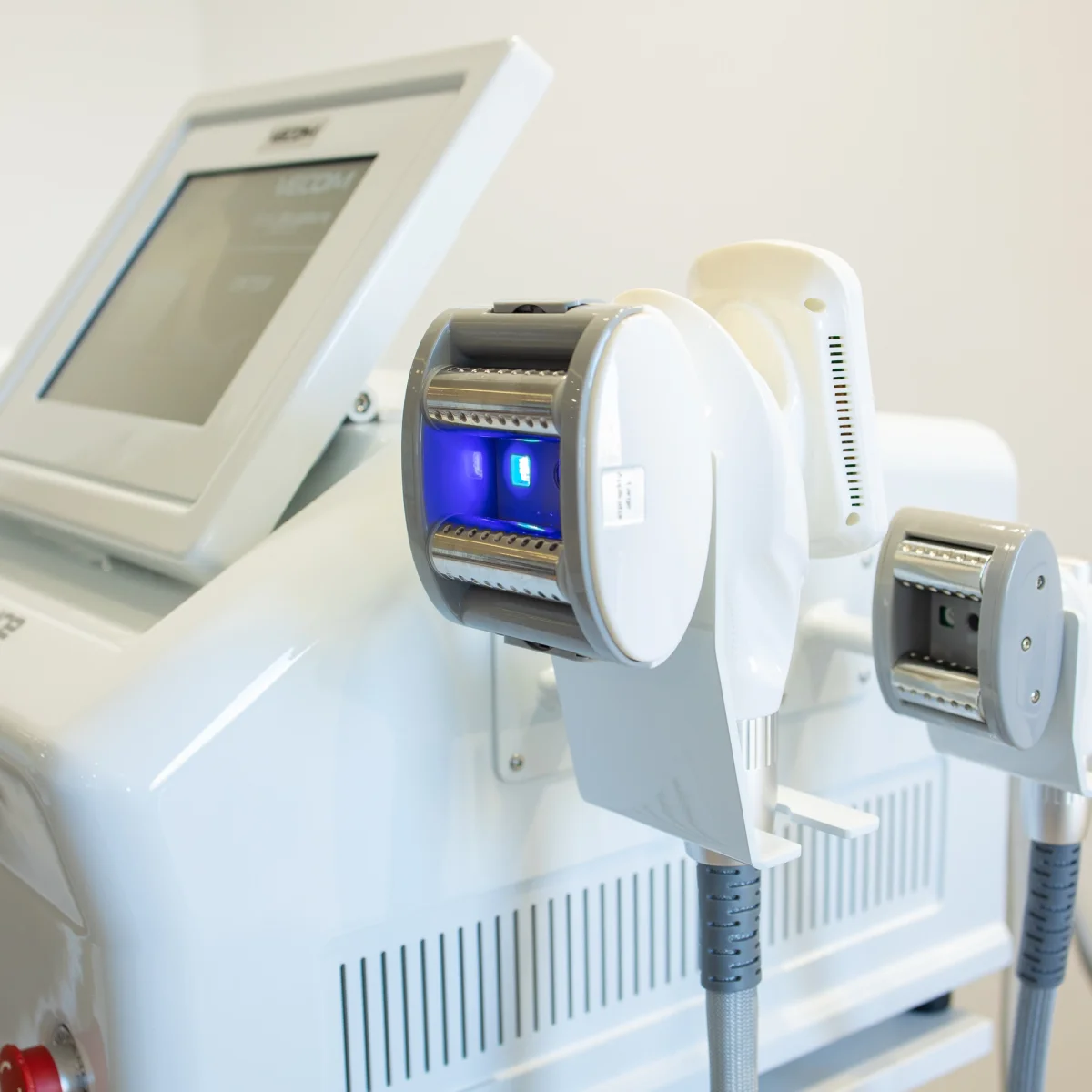

RF + Vacuum Rollers

RF converts to heat: faster local metabolism, microcirculation, reduced capillary water retention, lipolysis reactivation, less fibrotic reaction — new collagen and firmer tissue.

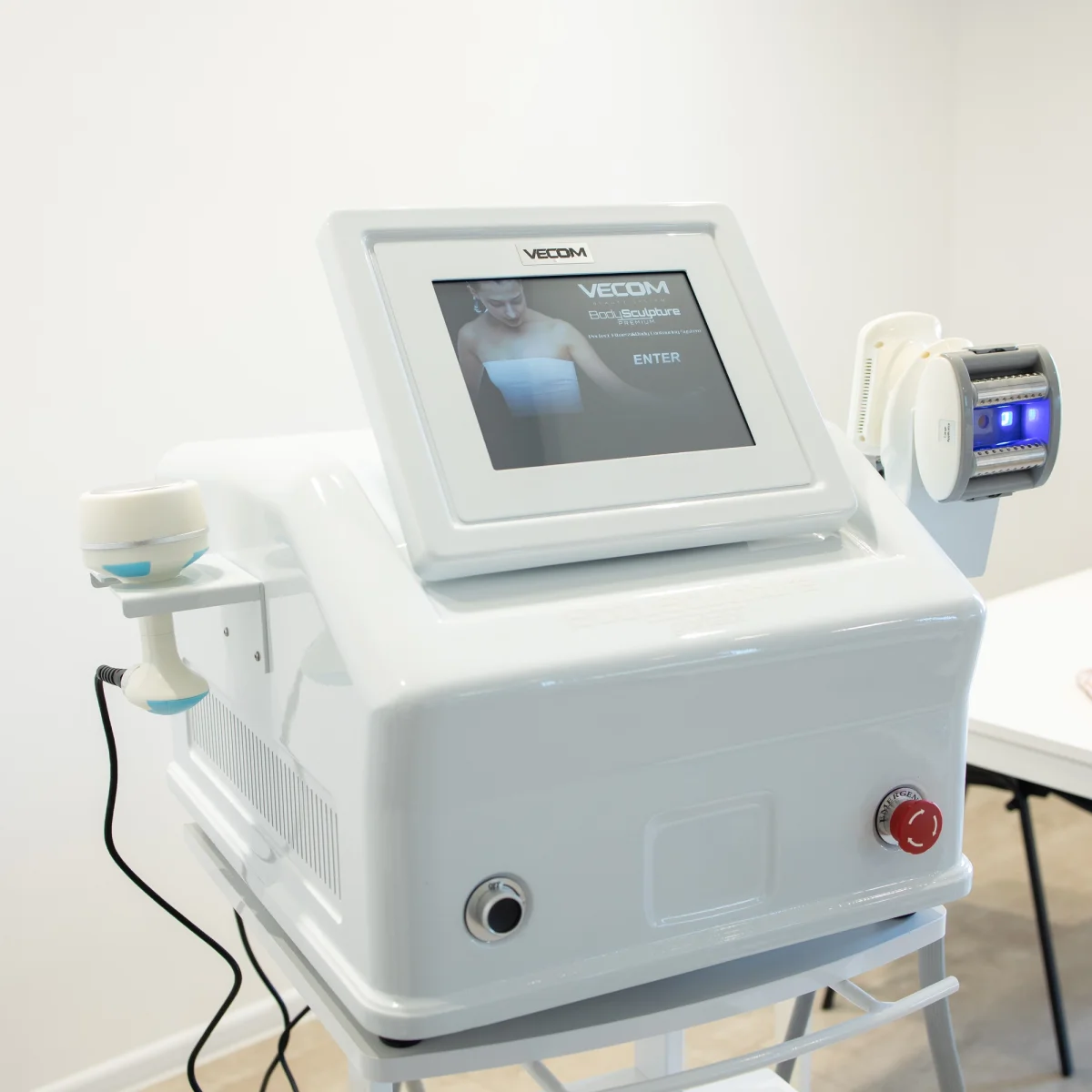

Portable Cabinet

Floor-standing mobile unit with touch interface and multiple probes — suited to studios that need full body protocols without a fixed installation.

Three pillars of the protocol

Three pillars of the protocol

Body Sculpture Portable sequences selective ultrasound for adipose tissue and cellulite, mechanical roller massage for lymphatic drainage and contour, and RF-with-vacuum for dermal heating and collagen renewal — combined in one device per manufacturer training.

  • Ultrasound / cavitation class handpiece for local fat metabolism
  • Rollers for drainage and silhouette
  • RF heat for tightening and anti-oedema effect
Designed for professional body work

Designed for professional body work

The system packages vacuum, light-assisted rollers, RF levels and cavitation output into defined probe families — use only with proper certification, client assessment and the Vecom operator manual.

  • Multiple LED wavelengths on large roller probe
  • Cavitation probe with pulsed output and level control
  • Emergency stop and touch UI on main unit
